DESCRIPTION of the TRICAP EVDEP machine:
TRICAP EVDEP is positioned directly downstream of the capsule filling machine.
The lifting capacity of capsules is 40 cm.
Dedusting operation is carried out by the combined action of an aspiration and an endless screw rotation.
- Eliminates product waste rejected with production (powder slugs, micro granules).
- Empty the loose bodies filled with product ejected from the filling machine.
We have developed 2 types of dedusting screws specifically adapted to each application:
- For pellets and powder not sticking -> Dedusting screw type (DEPSIL) with GMP validated cleaning.
- For sticky products -> Dedusting screw type (DEPNYLPOL).
| Specifications TRICAP EVDEP: | |
|---|---|
| Production output | Until 200000 capsules/hour |
| Available sizes | All sizes available |
| Time to complete disassembly | Less than 1 minute |
| Time for removal of the dedusting screw | Less than 30 seconds |

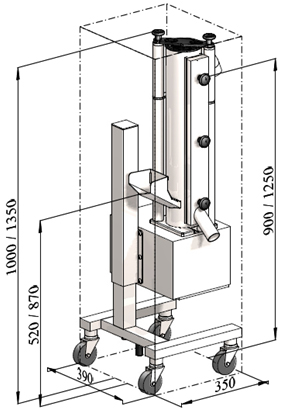

| Dimensions on the floor (length x width) | 35 x 39 cm |
| Capsules entrance height (adjustable) | 52 to 87 cm |
| Capsules lifting capacity | + 38 cm |
| Weight | 40 Kg |
| Power | 220V – 50 Hz single phase |
| Power Consumption | 75W |
| Air consumption | Pneumatic energy not used |
